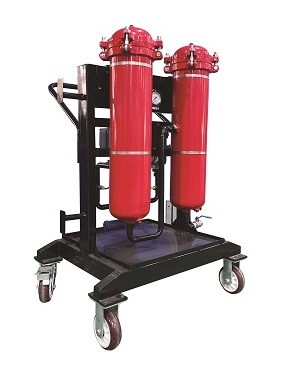

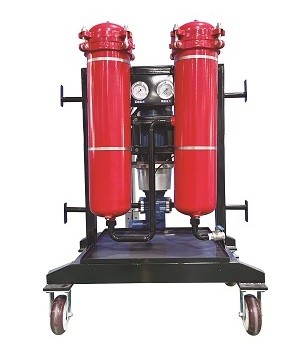

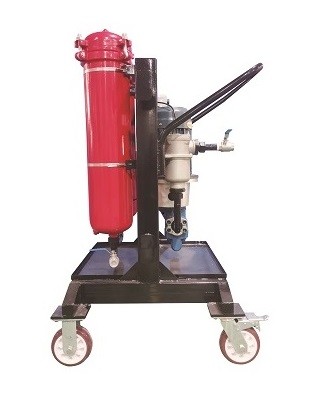

High viscosity oil filter is a filtering equipment designed for high viscosity oil (Cst>150).
In low-temperature environments, oil viscosity increases significantly, especially for high-viscosity oils, making it nearly impossible for ordinary oil filters to function properly. This oil filter is recommended for customers whose work environments are frequently affected by cold weather.
Please let us know the ambient temperature and oil type at your site. We will customize the filter accuracy, pump, flow rate, interface size and power plug according to the actual working conditions.
|
|
|
流量Flow rate | 25~150L/min |
工作溫度Operating temperature | 5~80℃ |
工作壓力Operating pressure | 0~16 bar |
I 級過濾精度Level I filtration rating | 100μm |
II 級過濾精度Level filtration rating | 10~40μm |
III級過濾精度Level III filtration rating | 1~10μm |
濾材材料Filter element material | 玻纖,不銹鋼網(wǎng)fiberglass, stainless steel mesh |
過濾器殼體材料Housing material | 鋁、碳鋼或不銹鋼aluminum,carbon steel or stainless steel |
接口類型Type of connect | flange or thread |
適用粘度Viscosity | 150~760Cst |
電壓Voltage | AC380V/AC230V/AC110V |
